Mitsubishi EVO 10 – HKS R Type Intercooler Kit
£1,690.00 Ex.Vat | £2,028.00 Inc.VAT
SKU#92070 | MPN: 13001-AM006
——————————————————————————
HKS: R Type Intercooler kit EVO 10 (new)
Please scroll down for Specifications.
For more details or photos please don’t hesitate to contact us, email: sales@japperformanceparts.co.uk or phone: 01293 520090, or better yet why not come down and visit us at our site in Crawley, open weekdays 9:00am-6:00pm and Saturdays 9:00am-2:00pm.
Shipped in 3-5 working days
Description

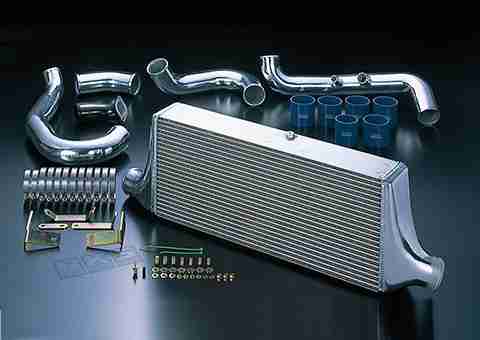

HKS Intercooler Kit for Mitsubishi LANCER EVOLUTION X CZ4A
■Features
- R type core, which is large capacity + low pressure loss type, was selected. Performance will be improved even with stock ECU.
- The side tank has effective usage of air flow of core bumper open from the intercooler entrance to exit.
- We made it very short piping layout and large radius of bending to reduce the bad response caused by front mount layout. So it will have about same as the stock intercooler boost pressure spooling.
- Stock intercooler in the engine compartment, the core tends to accumulate the heat from engine and cause knocking for the starting. By putting the intercooler in front help prevent the knocking and make it unbreakable tuning.
- You can improve performance with normal ECU but using HKS F-CON iS/V Pro for setting let you have more and better performance.
- Lightweight R-Type core, which has high cooling efficiency and less pressure loss.
- In order to improve response, pipe is designed short and less bending layout.
- Just a small modification of front bumper is required for installation.
- High performance “φ70 Piping spec” and low cost “. (Stock Piping is φ60.)
- Core size (525 x 304 x 103), Stock (490 x 292 x 65)
- Stock air cleaner box, Racing Suction Reloaded, SSQV, Intercooler Piping Kit can be used together.
■PERFORMANCE
【TEST CAR SPEC.】
| Vehicle | LANCER EVOLUTION X | Muffler | LEGAMAX Premium |
| Model | CZ4A | Other exhaust part | METAL CATALYZER + Center Pipe |
| Engine Model | 4B11 | Air Cleaner | Racing Suction R |
| Grade | GSR | ECU | Stock |
| Transmission | TC-SST | Boost pressure control | Stock solenoid |
■SPECIFICATION
| Code # | 13001-AM006 | 13001-AM007 |
| Spec. | φ70 full piping | Stock replacement |
| Core ASSY | Polished tank | Not polished tank |
| Inlet pipe | φ70 × 3 (1 is buff) | φ60 X × (no buff) |
| Outlet pipe | φ70 × 2 (1 is buff) | None |
| Other bracket | Other bracket |
* Can’t see side tank for stock bumper
■REMARKS
- Modification of head lamp support upper panel, reinforcement and air con pipe are required during installation.
- Re-setting of ECU is not required.
- Area of core will be larger than stock and it is thicker. Therefore, upgrading of radiator is recommended for sport driving.
【R TYPE INTERCOOLER】
R TYPE is designed for circuit use; ideal to use with a stock replacement type turbine to wastegate type large size turbine. This intercooler derives better turbine performance regardless the engine rpm during driving on a straight track and acceleration after cornering.
The weight is approximately 25% lighter than a conventional product. (In-house comparison).
* R Type AL is aluminum polished piping type.
(1) Inner Fin (triangular straight type)
Triangular straight type for less pressure loss of air flow.
(2) Outer Fin (triangular louver type)
Like S TYPE, Triangular louver type for outer fin.
R-TYPE INTERCOOLER KIT V SYSTEM
Large capacity Intercooler core, which handles up to 500PS, and radiator are V mounted. Specially designed for FD3S RX-7. Because of the design, cooling air is used efficiently. For street, circuit and drift.
| Vehicle | Model | Engine | Model Year | Type | Core Size・Location | Type | Code No. | Manual | Remarks |
|---|---|---|---|---|---|---|---|---|---|
| LANCER EVOLUTION X | CZ4A | 4B11 | 07/10 -15/09 | R type INTERCOOLER | 525×304×103・Front mount | R type AL | 13001-AM006 |  | φ70 pipe. Stock part(5256A832) is required for RS and all grade after 09/10. |
